WB0200H

Male End Ceramic Bead with Hole – White

For use in Flexible Ceramic Pad Heaters and Flexible Insulated Preheaters, our ceramic beads can withstand temperatures of up to 1460°C in the long term and 1580°C in the short term.  Special Ceramic Beads are also available for use in Channel Heaters.

  • Dimensions: 24 H x 25 W x 10 D mm
  • Weight: 13g
  • Colour: White (RAL9003)
  • Material: Aluminium Oxide 93.1%
  • Water Absorption Rate: 0.01% (by wt.)
  • Compression Strength: 1280 Mpa @ 25°C
  • Dielectric Strength: 15.18 MV/m
  • Temperature Shock Test: @ 800°C 15 times (max. 1000°C)
  • Safety Working Temperatures: 1460°C long term, 1580°C short term
500 pc
Ceramic Beads

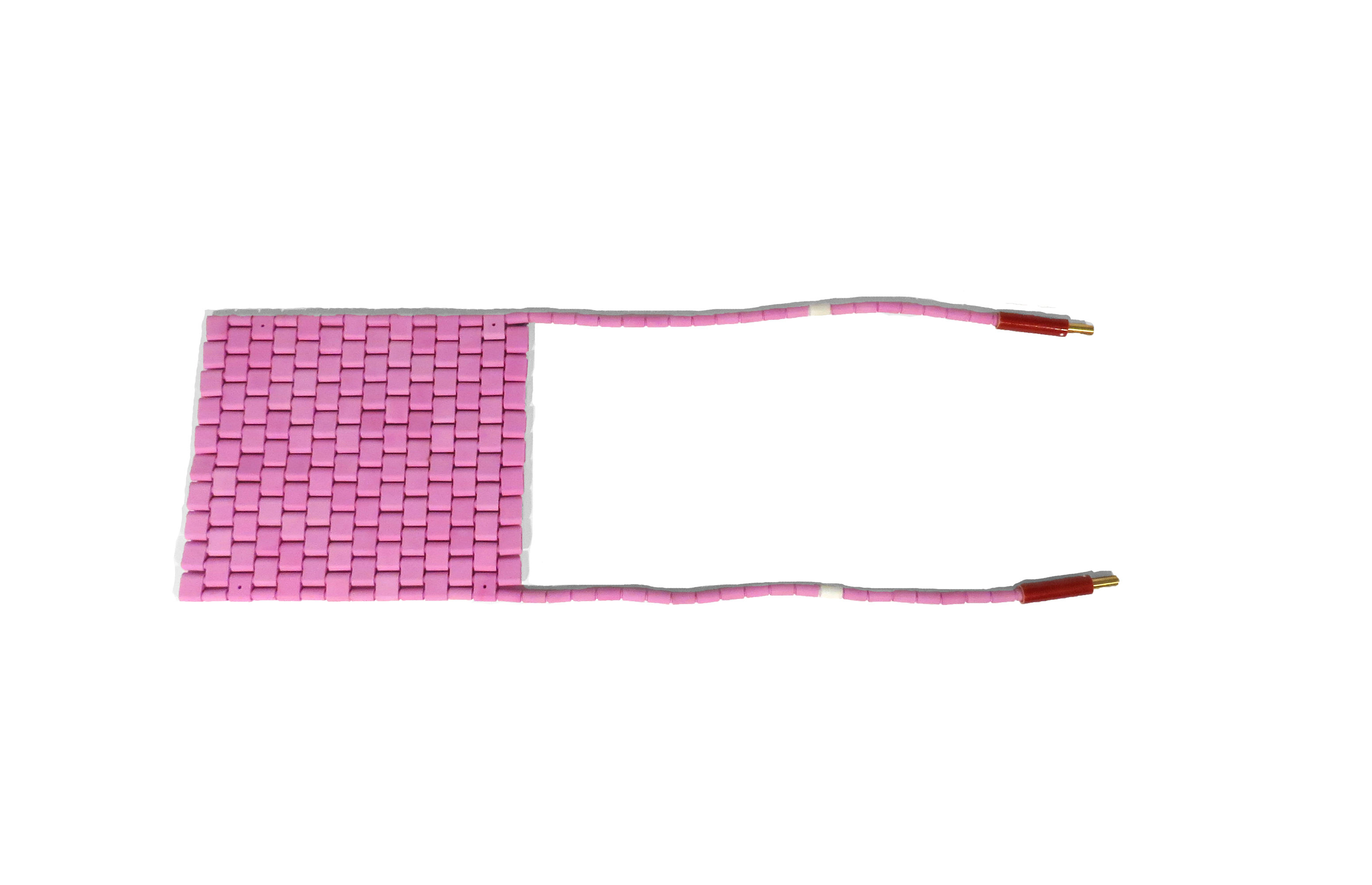

Ceramic Beads are a vital component used to make Flexible Ceramic Pad Heaters, Channel Heaters and Flexible Insulated Preheaters for the pre- and post-weld heat treatment of welds.

With safety working temperatures of up to 1460°C in the long term and 1580°C in the short term, our 3 ranges of Ceramic Beads come in a wide variety of shapes and sizes (Pink Ceramic Beads, White Ceramic Beads and Special Ceramic Beads) to suit application requirements.

Flexible Ceramic Pad Heaters, Channel Heaters and Flexible Insulated Preheaters are available either assembled or the Ceramic Beads, wires and brass connectors can be purchased separately for self-assembly.
